Overland Trailer Build – Part 5

It been a while since I have been able to work on the trailer.   For the last five months it has sat neglected in storage while we lived in a rental home here in Arizona.   Now that we have purchased a house with a garage and workshop, its time to get too it!

If you need to catch up on the previous build post, follow these links:

Part 1     Part 2    Part 3   Part 4

First up was to frame out the slide.  Using 16 roller bearings per side would surely give me the support I wanted for a full length slide/tray.

601FB261-D851-4A38-BBFF-B312950BE7EF_1_201_a

3D8B4E1C-44ED-4829-AE7F-0C9E0AC53A42_1_201_a

C18ACA49-3A55-4D03-852A-EA0186CA3D2F_1_201_a

D529C7E0-5A35-466A-85C5-5FB308D7D6FF_1_201_a

A7AE9A5D-737E-408E-8C7B-D76DEC31F876_1_201_a

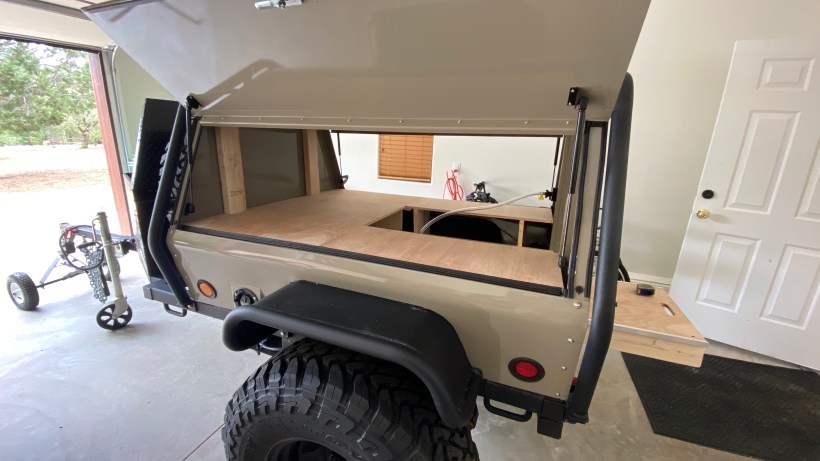

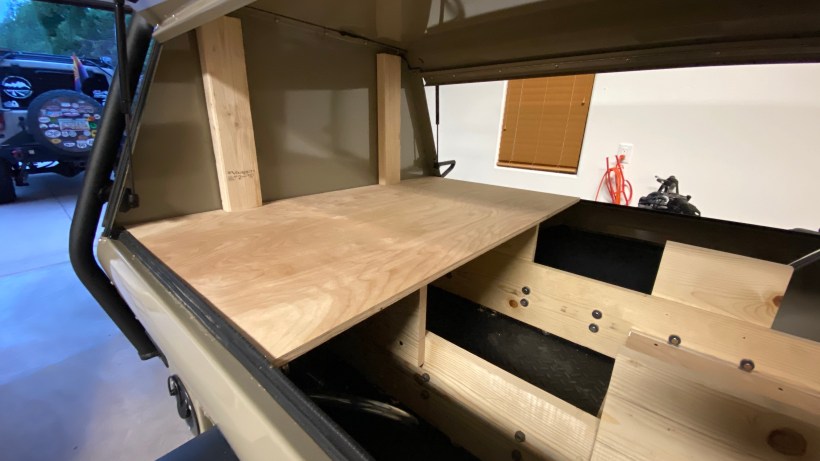

The framing would also support the top decking for storage and work surfaces.  In the end I re-worked some of the lower supports to ensure the decking was sturdy and allow for compartmental storage underneath.

BE8BB6CD-FA1E-4BA4-ACE8-16DD53BD8222_1_201_a

3BA54DC8-33B4-4B25-8C03-ACA192C77A2F_1_201_a

31D5CEAD-5E22-48EB-85FE-DA4F056E2633_1_201_a

Here you can see the access doors cut into the decking for storage access.

8150A71F-3C00-4B81-8CDC-23D7F0AC7C7C_1_201_a

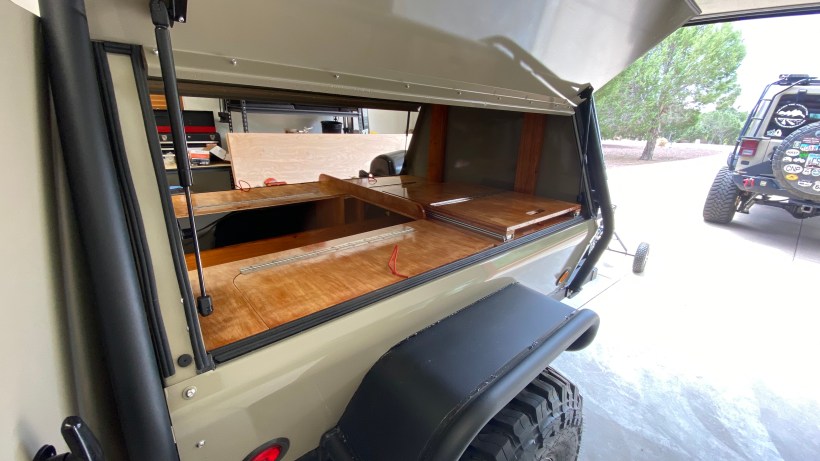

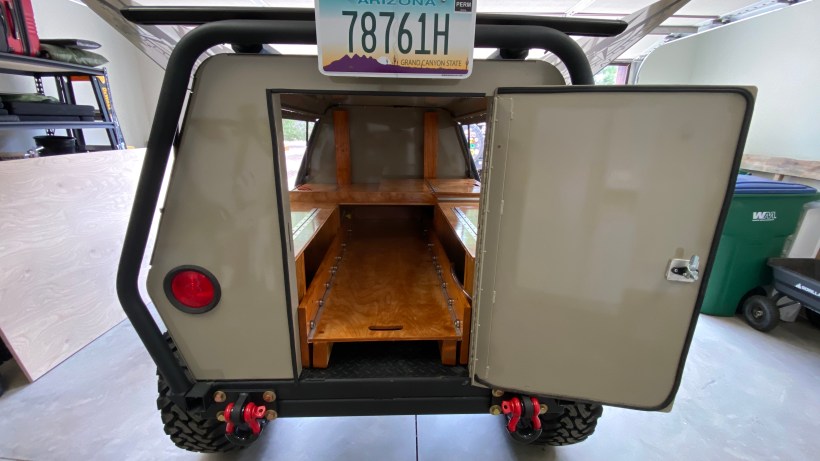

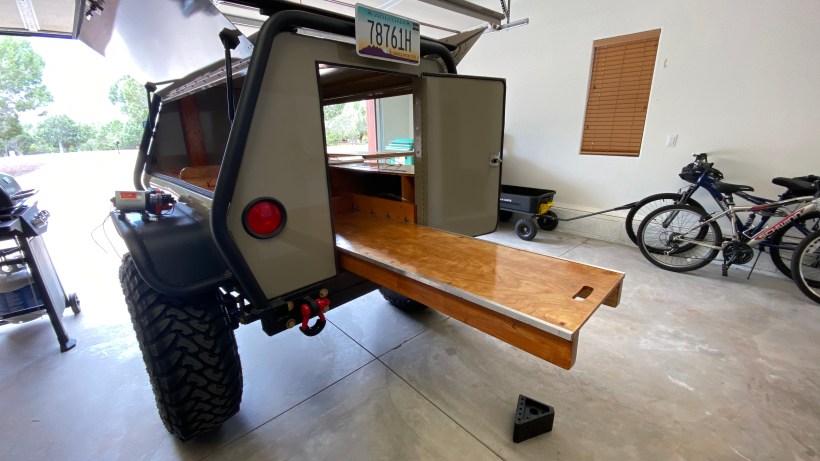

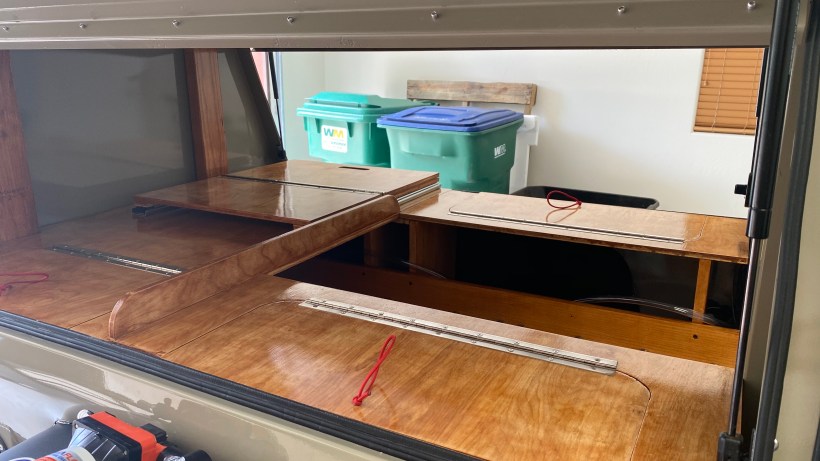

Sealed and stained.

A09FE39B-3A54-4DC3-8517-D6965DF98F27_1_201_a

4820259E-A865-403D-9767-A8D9CDFB30DB_1_201_a

A945B3FE-9A73-44B5-8536-C2C44EF658C9_1_201_a

99E2C2FD-B5C0-4F25-93EF-41EBEC3EC8BA_1_201_a

A4AA7AF9-8976-4AB9-99B3-134654EB8122_1_201_a

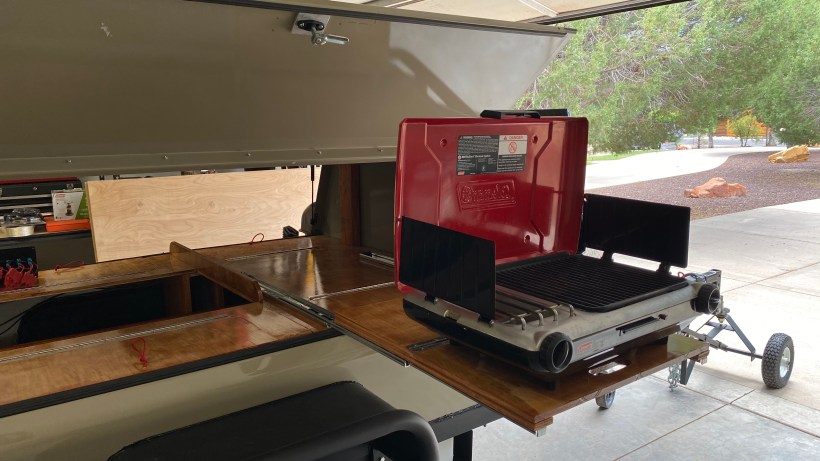

If you recall from an earlier post, there is a 20 gallon tank installed below the trailer where the fuel tank used to reside.   Here is the pump compartment all plumbed and ready to be wired in.

A73BE3EC-52BC-41F5-9EC5-4F54A35A7E1F_1_201_a

EC14B862-1FF6-489B-A28E-7A383A4F4EB3_1_201_a

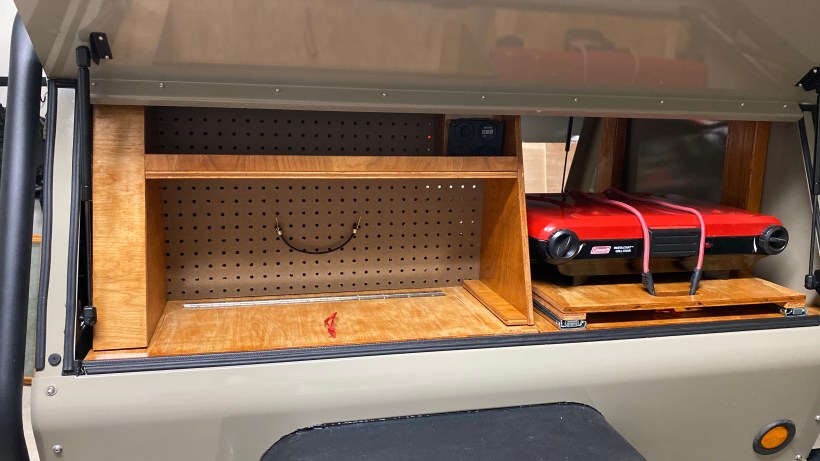

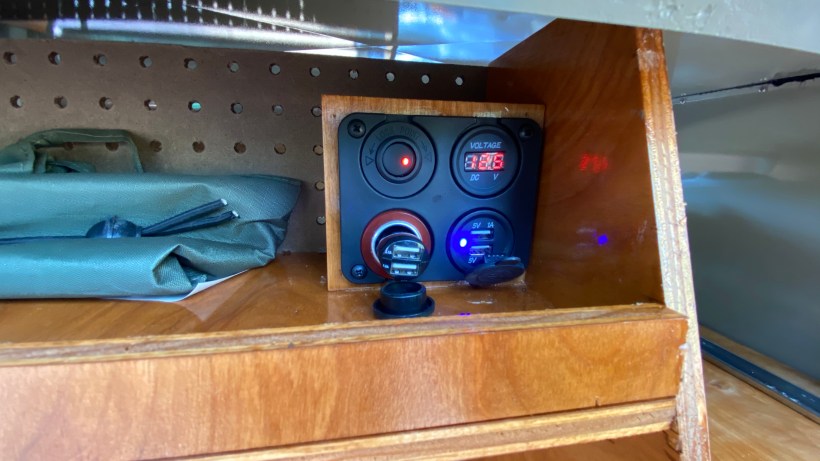

Side storage/shelves  were built next.   Here is the passenger side. Note the USB and voltage indicator in the right corner of the shelf.

5FC093A2-F5C2-4990-8DF9-38F4620D42E7_1_201_a

A5FBB0DE-DC07-4048-B52B-4BDE43122F62_1_201_a

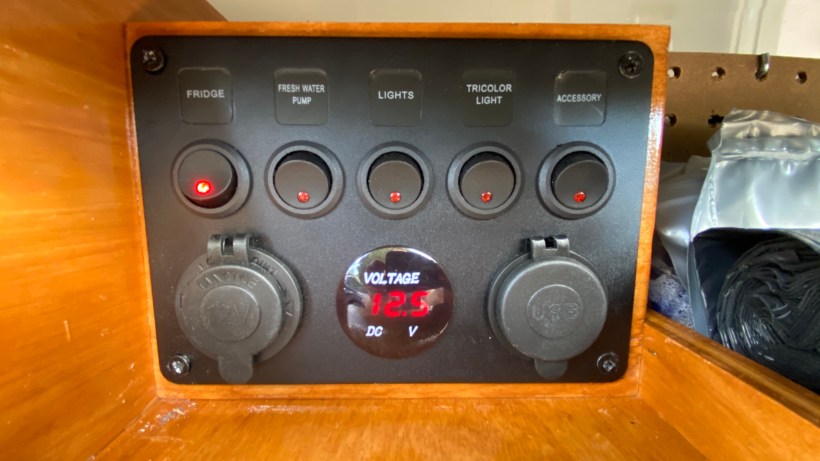

On the driver side, is the master switch panel that controls 12v for the 1) Fridge, 2) Water pump, 3) Dimmable White LEDs, 4) Dimmable Red LEDs, 5) Accessory power for passenger side.

5FB2E604-C72F-4B5E-A503-46CD152E6DB0_1_201_a

B7989F3D-63DD-425F-B285-990A43AD0403_1_201_a

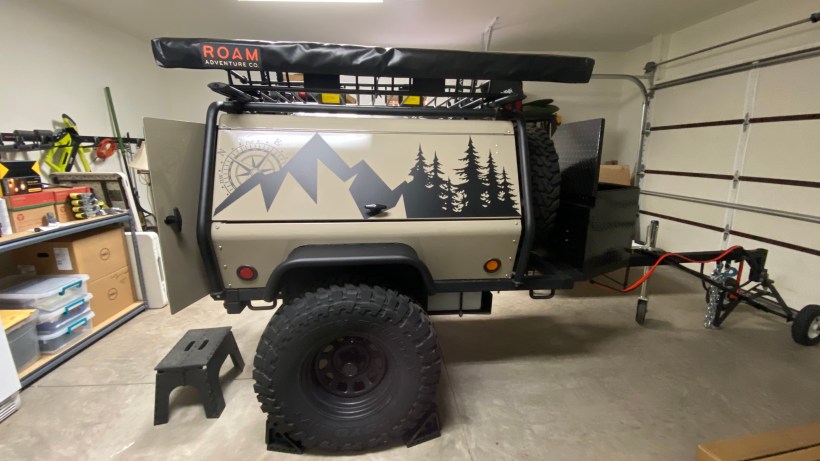

Up top I added a 62 x 24 cargo rack and a Roam Adventures 6.5ft awning and kayak brackets.

43834839-F9AE-471C-A63F-8450C805EB2A_1_201_a

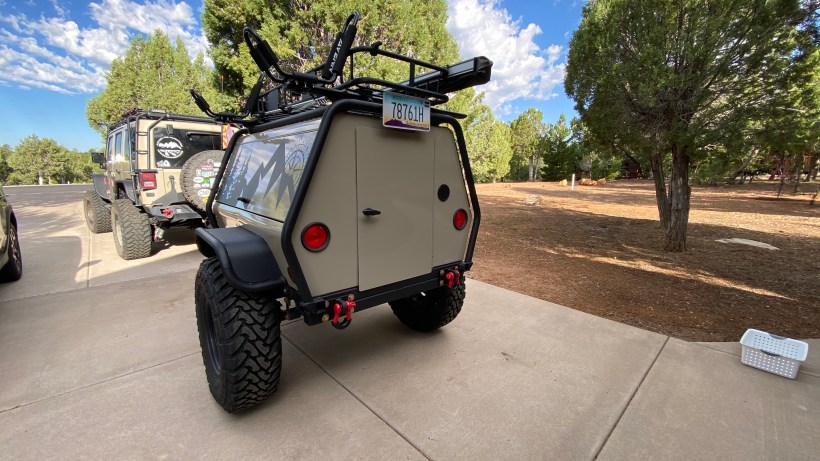

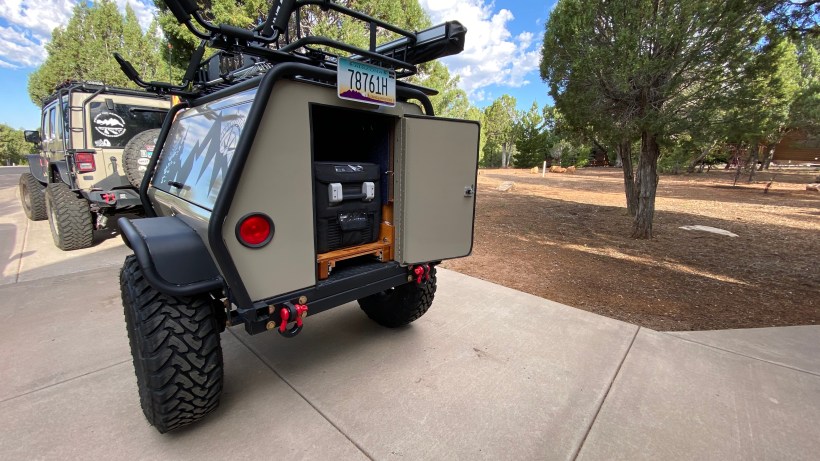

The next four photos are the a progression of the slide fully extended.

161FB6F8-0096-424A-B92A-68C01007CCF3_1_201_a

94B050B0-8011-4FB7-BE85-927F8DBF3E59_1_201_a

C2452086-6BBD-4A60-A913-E22D078C44DA_1_201_a

9EDB30AF-BDD3-4771-BE97-9FD0A4B60AE9_1_201_a

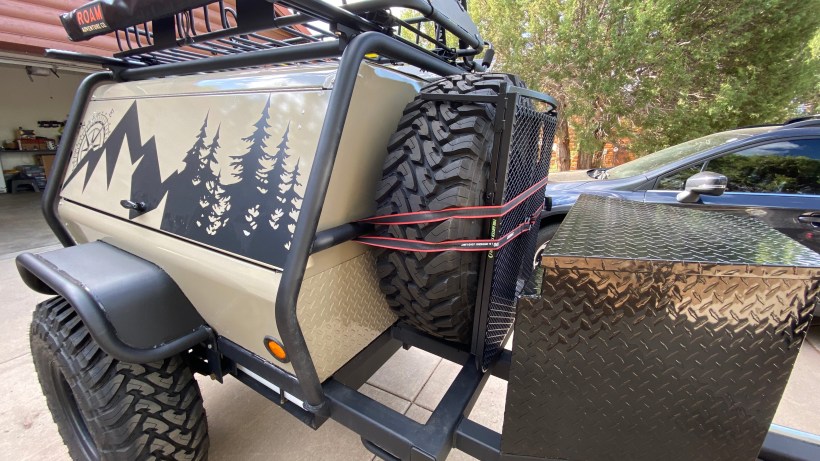

In the tongue box is a 12v deep cycle battery which is connected with 2 gauge wire up to the Jeep.  The Jeep has a National Luna Dual Battery setup and when engaged, will charge both the 2nd Jeep battery as well as the third battery in the trailer.  Here the wiring still needs a little dressing but everything checks out and operates as it should.

2E7F10C9-3690-49DF-8F1E-7B14B807B58F_1_201_a

Stay tuned, as we head out on the maiden camping trip and put the trailer through its paces!!

2394862E-18D5-4443-A0EB-C95D2656F293_1_201_a
